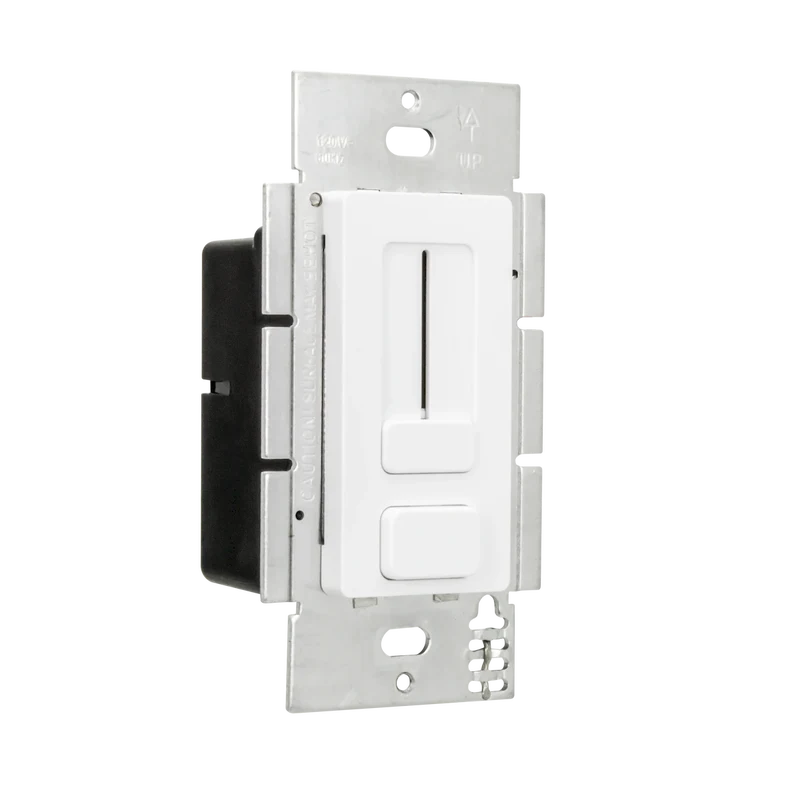

Switchex Dimmer and Driver in One 60 Watts 24V DC

SERIES
PLX-SWX24V-60
124V ~ 60 Watt LED Dimmer Switch + LED Power Supply in one; 120V AC input, DC Output, Fits in standard single gang box; Includes 3 faceplates in Gloss White, Gloss Almond, Gloss Brown (trim plate not included)
Switchex Dimmer and Driver in One 60 Watts 24V DC
Switchex Dimmer and Driver in One 60 Watts 24V DC Switchex Dimmer and Driver in One 60 Watts 24V DC Switchex Dimmer and Driver in One 60 Watts 24V DC Switchex Dimmer and Driver in One 60 Watts 24V DC Switchex Dimmer and Driver in One 60 Watts 24V DC Switchex Dimmer and Driver in One 60 Watts 24V DC

Performance

Input Voltage
120V AC
Output Voltage
24V DC
Wattage
60 W
Power Factor
>0.9 @ 120VAC 60Hz max load
Temperature Range
0C (32F) to 40C (104F) degrees
Dimming
1-100%

Physical

Weight
0.6 lbs
Width
2.12 Inch
Length
1.37 Inch
Height
4.13 Inch

Certification

Safety Rating
cULus Listed
Location Rating
Dry
Indoor
Y
ROHS
Y
FCC
Y
Class 2
Y
Item Number Length Input Voltage Wattage UOM
PLX-SWX24V-60 1.37 Inch 120V AC 60 W Each

Specification Sheets
