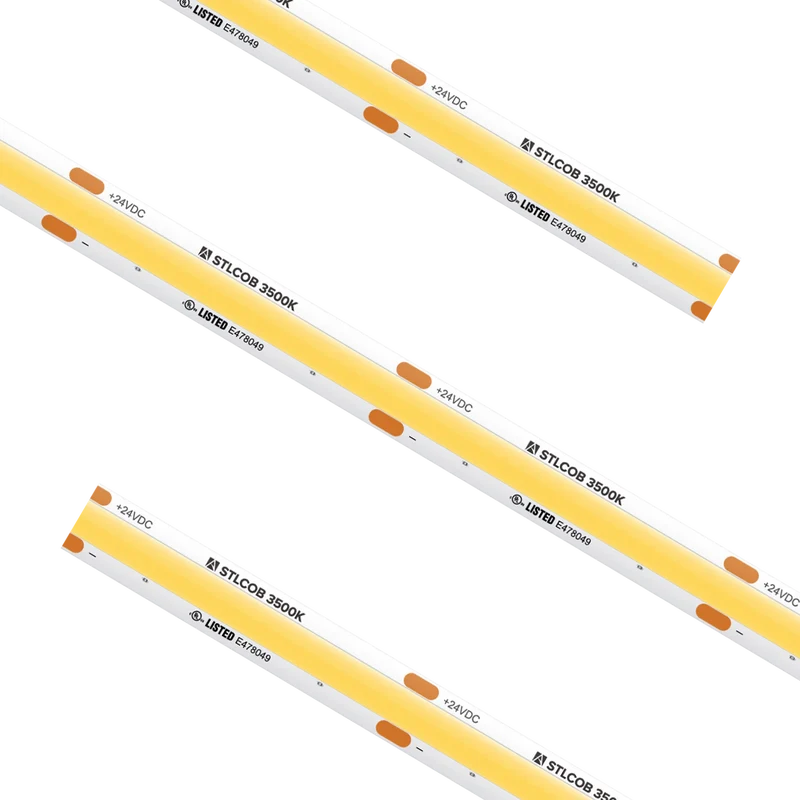

Standard COB Tape Light IP54 3500K Custom Cut

SKU
PLX-STL54-COB-35K-24V-CC
Custom Cut STL COB Tape Light, IP54, 1.96" cut increment, 3500K, 2.19W/ft
Standard COB Tape Light IP54 3500K Custom Cut
Standard COB Tape Light IP54 3500K Custom Cut

Performance

Input Voltage
24V DC
Input Frequency
60Hz
Wattage
2.19 W/ft
CCT
3500K
CRI
90+
Lumens
200
Cut Increment
1.97 in
Max Run
23 ft
Optics (Degree)
120 degrees
Rated Life (Hr)
50,000 Hours
Temperature Range
5C (41F) to 70C (158F) degrees
Dimming
TRIAC / ELV 5 - 100%

Physical

Weight
0.02 lbs

Certification

Safety Rating
cULus Listed
IP Rating
IP54
Location Rating
Damp
Indoor
Y
Outdoor
Y
Item Number Input Voltage CCT CRI Wattage Lumens Max Run IP Rating UOM
PLX-STL54-COB-35K-24V-CC 24V DC 3500K 90+ 2.19 W/ft 200 23 ft IP54 Foot

Specification Sheets

Standard Grade COB Tape Light Custom Cut_SpecSheet_PLX-STL-COB-CustomCut.pdf
