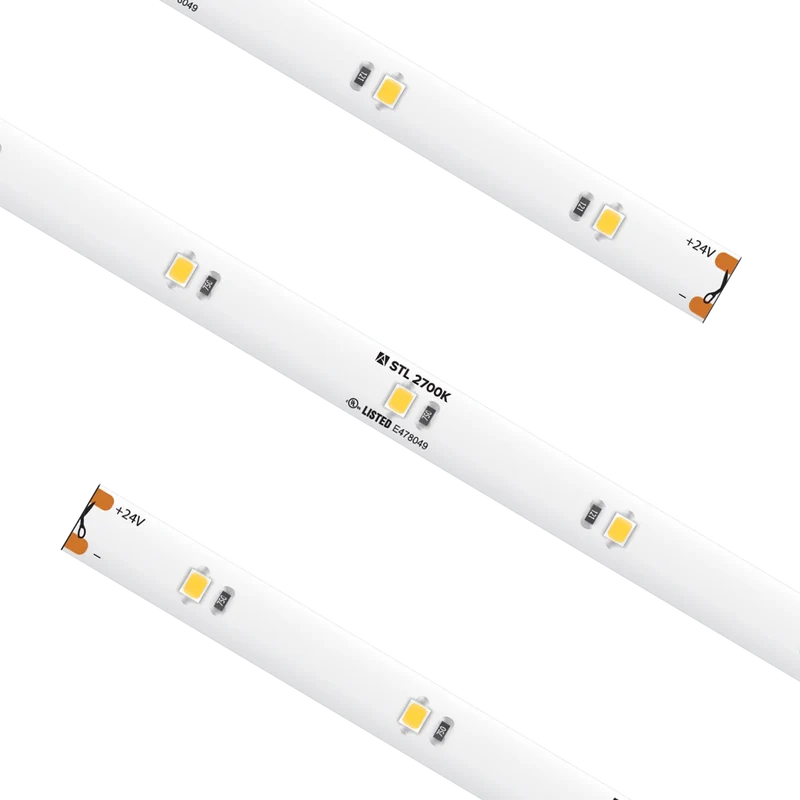

Standard Tape Light IP54 2700K 32.8Ft
SKU
PLX-STL54-27K-24V-33
STD GRADE TRULUX,24V,2700K, 32.8FT RL W/3 TL-CONKITS: Y0409676/TL-2PWR-HD 10MM 2PIN CONNECTOR W/6' CABLE, 2.19W/FT, 94+CRI, IP54, 6.56" CUT
Performance
Input Voltage
24V DC
Wattage
2.19 W/ft
CCT
2700K
CRI
96+
Lumens
146
Cut Increment
6.56 in
Max Run
32.8 ft
Optics (Degree)
120 degrees
Rated Life (Hr)
50,000 Hours
Temperature Range
5C (41F) to 70C (158F) degrees
Dimming
TRIAC / ELV 5 - 100%
Style
2Pin Linking
Spacing
1.30 Inch
Physical
Weight
0.90 lbs
Width
0.03 Foot
Length
32.8 Foot
Certification
Safety Rating
cULus Listed
Title 24
Y
IP Rating
IP54
Location Rating
Damp
Indoor
Y
Outdoor
Y
| Item Number | Length | Input Voltage | CCT | CRI | Wattage | Lumens | Max Run | IP Rating | UOM |
|---|---|---|---|---|---|---|---|---|---|
| PLX-STL54-27K-24V-33 | 32.8 Foot | 24V DC | 2700K | 96+ | 2.19 W/ft | 146 | 32.8 ft | IP54 | Each |
