Senik Graze Lit Static White

SERIES

C-PLX-SNK-GRAZE

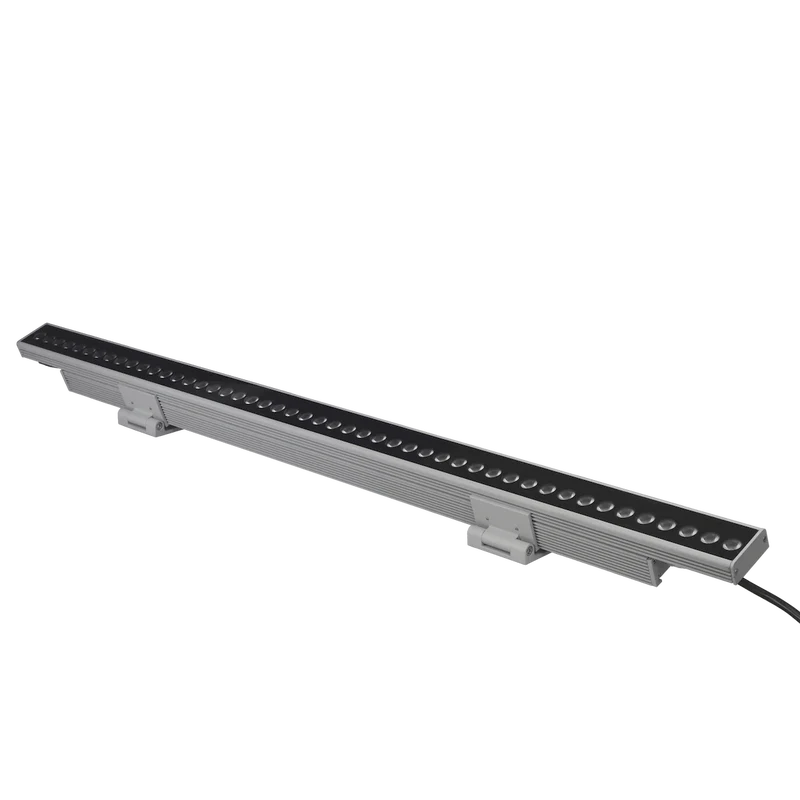

The Senik Graze Lit is a powerful wall grazing luminaire built for lumen output and directional versatility, all in a diminuitive form factor. Not only is the physical fixture able to be rotated 180° with the included mounting bracket, 35° and asymetric 20°x4° optics are available to tailor beam angle output to the application.

Specifications

Performance

Input Voltage

100-277V AC

CCT

2700K / 3000K / 4000K

Finish

Satin Aluminum

Wattage

12-48W

Optics (Degree)

35° | 15°x40°

CRI

80+

Max Run

1ft=70 units (@100V) | 196 units (@277V), 4ft=21 Units (@100V) | 49 Units (@277V)

Rated Life (Hr)

L70>70,000 hours

Temperature Range

-40°F to 122°F (-40°C to 50°C)

Dimming

0-10V

Lumens

2725-3985Lm

Certification

IP Rating

IP66

Location Rating

Wet

Outdoor

FCC

Ordering Information

Item Number	Length	Input Voltage	CCT	CRI	Wattage	Lumens	Max Run	IP Rating	UOM
PLX-WGL-27K-1-35-SA	1 Foot	100-277V AC	2700K	80+		1031	70/196 units		Each
PLX-WGL-30K-1-35-SA	1 Foot	100-277V AC	3000K	80+	12 W	1065	70/196 units	IP66	Each
PLX-WGL-40K-1-35-SA	1 Foot	100-277V AC	4000K	80+		1176	70/196 units		Each
PLX-WGL-27K-1-15X40-SA	1 Foot	100-277V AC	2700K	80+		1072	70/196 units		Each
PLX-WGL-30K-1-15X40-SA	1 Foot	100-277V AC	3000K	80+		1192	70/196 units		Each
PLX-WGL-40K-1-15X40-SA	1 Foot	100-277V AC	4000K	80+		1096	70/196 units		Each
PLX-WGL-27K-4-35-SA	4 Foot	100-277V AC	2700K	80+		4479	21/49 units		Each
PLX-WGL-30K-4-35-SA	4 Foot	100-277V AC	3000K	80+		4625	21/49 units		Each
PLX-WGL-40K-4-35-SA	4 Foot	100-277V AC	4000K	80+		5109	21/49 units		Each
PLX-WGL-27K-4-15X40-SA	4 Foot	100-277V AC	2700K	80+		4811	21/49 units		Each
PLX-WGL-30K-4-15X40-SA	4 Foot	100-277V AC	3000K	80+	48 W	4811	21/49 units		Each
PLX-WGL-40K-4-15X40-SA	4 Foot	100-277V AC	4000K	80+		4423	21/49 units		Each
