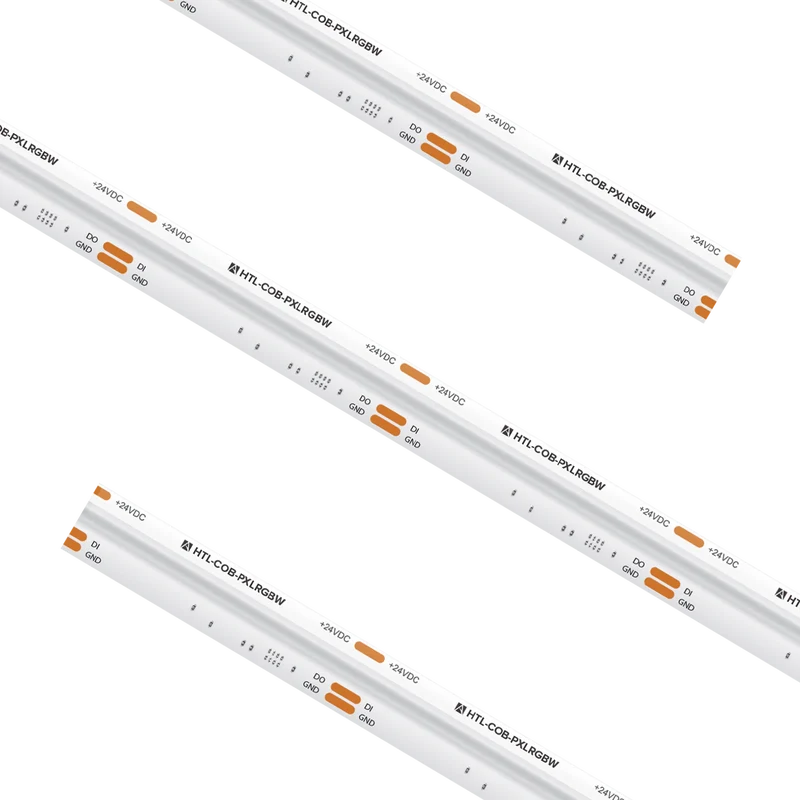

High Output Pixel COB Tape Light IP54 RGBW
SKU
PLX-HTLCOB54-PXLRGBW-24V-16
Digital pixel COB tape light allows for individually addressable sections, enabling independent control of dynamic color and design. Featuring a seamless COB design, create endless effects including chasing, popcorning, waves, and strobe with easy to use SPI control protocol.
- Seamless COB design that eliminates virtually all LED dotting
- Dynamic, Pixel-based RGBW (3000K) color mixing capabilities
- Create millions of color combinations for impactful installations
- Cuttable every 3.94” with 16.4ft max run
- Control via DMX for color and dimming (requires SPI decoder)
- cULus Listed for indoor dry and damp locations
- 50,000 hours rated life
Performance
Input Voltage
24V DC
Wattage
4.87 W/ft
CCT
Digital Pixel RGBW
Lumens
230
Cut Increment
3.94 in
Max Run
16.4 ft
Optics (Degree)
120 degrees
Rated Life (Hr)
50,000
Temperature Range
-20°C (-4°F) to 40°C (104°F)
Dimming
SPI WS2814
Physical
Weight
3.33 lbs
Width
0.03 Foot
Length
16.4 Foot
Certification
Safety Rating
cULus Listed
IP Rating
IP54
| Item Number | Length | Input Voltage | CCT | Wattage | Lumens | Max Run | IP Rating | UOM |
|---|---|---|---|---|---|---|---|---|
| PLX-HTLCOB54-PXLRGBW-24V-16 | 16.4 Foot | 24V DC | Digital Pixel RGBW | 4.87 W/ft | 230 | 16.4 ft | IP54 | Each |
