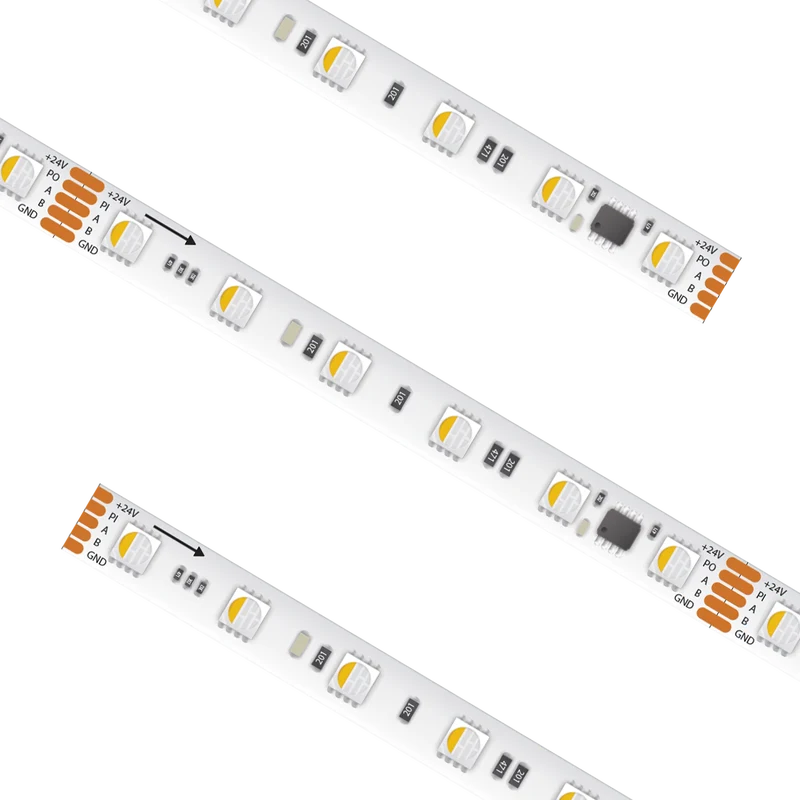

RGBW Dynamic Tape Light DMX Controlled 16.4Ft

SERIES
PLX-HTL20-PXL-RGBW6-24V-16
Digital pixel tape light allows for every 6 LEDs to be addressable, enabling independant control of dynamic color and design. Create endless effects including chasing, popcorning, waves, and strobe with easy to use DMX 512 control protocol. RGB+3000K dynamic pixel color mixing capabilities DMX 512 - 6 LED Pixel Resolution Create millions of color combinations for impactful installations Features SMD 5050 RGBW LEDs with 5 step SDCM Lumen output ranging up to 241Lm per foot (3000K) Cuttable every 3.94” with 16.4ft max run Easy installation featuring 3M VHB adhesive backing IP20 uncoated Control via DMX for color and dimming cULus Listed dry locations 50,000 hours rated life
RGBW Dynamic Tape Light DMX Controlled 16.4Ft
RGBW Dynamic Tape Light DMX Controlled 16.4Ft

Performance

Input Voltage
24V DC
Wattage
6.1 W/ft
CCT
Digital Pixel RGBW
CRI
90+
Lumens
95
Cut Increment
3.94 in
Max Run
16.4 ft
Optics (Degree)
120 degrees
Rated Life (Hr)
50,000 Hours
Temperature Range
-20C (-4F) to 40C (104F) degrees
Dimming
DMX512 0 - 100%
Spacing
16.67mm

Physical

Weight
0.39 lbs
Width
0.03 Foot
Length
16.4 Foot

Certification

Safety Rating
cULus Listed
IP Rating
IP20
Location Rating
Dry
Indoor
Y
Item Number Length Input Voltage CCT CRI Wattage Lumens Max Run IP Rating UOM
PLX-HTL20-PXL-RGBW6-24V-16 16.4 Foot 24V DC Digital Pixel RGBW 90+ 6.1 W/ft 95 16.4 ft IP20 Each

Specification Sheets

Instruction Manuals
