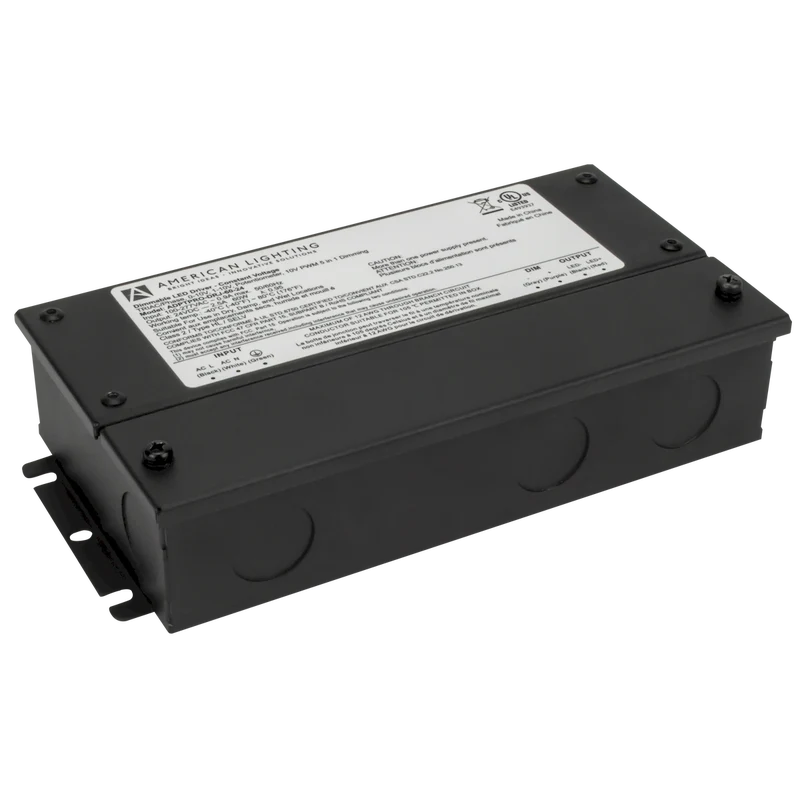

Adaptive PRO Driver with Enclosed Leads and Knockouts 60 Watts 24V DC

SERIES
PLX-ADPTPRODRJ24V-60
The Adaptive Pro 5-in-1 dimmable Class 2 drivers are designed to operate with any standard MLV / ELV / Incandescent TRIAC (forward phase) dimmer switch or can also be used with secondary side controls systems. Encased in a low profile aluminum enclosure that includes knock-outs for easy installation in any low voltage application. 24V DC Constant voltage 60W hardwire LED drivers 5-in-1 Forward and Reverse Phase Dimming: ELV / MLV / TRIAC / 0-10V / 1-10V / 10V PWM / Potentiometer Dedicated line voltage and low voltage wiring compartments Short circuit, over-load, and over temperature protections Class 2 / Type HL / FCC Compliant cULus Listed - Wet location rated
Adaptive PRO Driver with Enclosed Leads and Knockouts 60 Watts 24V DC
Adaptive PRO Driver with Enclosed Leads and Knockouts 60 Watts 24V DC Adaptive PRO Driver with Enclosed Leads and Knockouts 60 Watts 24V DC

Performance

Input Voltage
100-277V AC
Output Voltage
24V DC
Input Frequency
47-63 Hz
Output Frequency
2.5A
Wattage
60 W
Power Factor
0.98@120VAC 0.95@277VAC
Minimum Load
6 W
Temperature Range
-40C (-40F) to 60C (140F) degrees
Dimming
Phase Dimming / MLV / ELV / TRIAC 0-10V
Finish
Black

Physical

Weight
2.50 lbs
Width
2.79 Inch
Length
6.85 Inch
Height
1.73 Inch

Certification

Safety Rating
cULus Listed
Type IC
Y
Location Rating
Wet
Indoor
Y
ROHS
Y
FCC
Y
Class 2
Y
Item Number Length Input Voltage Wattage UOM
PLX-ADPTPRODRJ24V-60 6.85 Inch 100-277V AC 60 W Each

Specification Sheets

Video

Adaptive Pro 5-IN-1 Dimmable Drivers Product Tour
