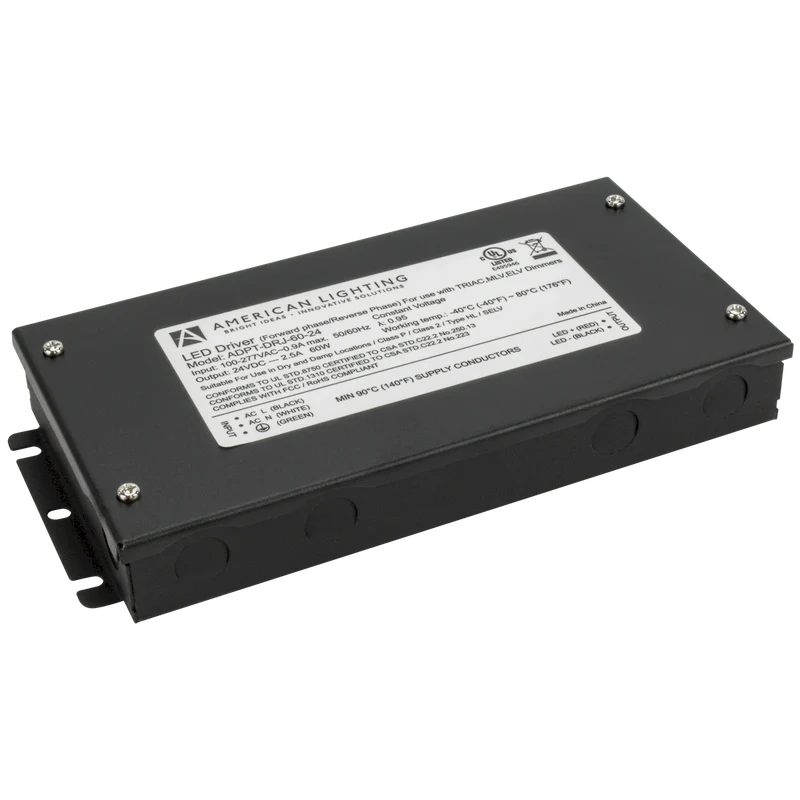

Adaptive Driver with Enclosed Leads and KNckouts 60 Watts 12V DC

SERIES
PLX-ADPTDRJ12V-60
12VDC 60W PHASE CUT CONSTANT VOLTAGE DRIVER W/JUNCTION
Adaptive Driver with Enclosed Leads and KNckouts 60 Watts 12V DC
Adaptive Driver with Enclosed Leads and KNckouts 60 Watts 12V DC Adaptive Driver with Enclosed Leads and KNckouts 60 Watts 12V DC Adaptive Driver with Enclosed Leads and KNckouts 60 Watts 12V DC

Performance

Input Voltage
100-277V AC
Output Voltage
12V DC
Input Frequency
50-60Hz
Output Frequency
5A
Wattage
60 W
Power Factor
0.98@120V 0.95@277V
Minimum Load
6 W
Temperature Range
-40C (-40F) to 60C (140F) degrees
Dimming
Phase Dimming / MLV / ELV / TRIAC 0-10V
Finish
Black

Physical

Weight
2 lbs
Width
3.54 Inch
Length
7.4 Inch
Height
1.02 Inch

Certification

Safety Rating
cULus Listed
Type IC
Y
Location Rating
Wet
Indoor
Y
ROHS
Y
FCC
Y
Class 2
Y
Item Number Length Input Voltage Wattage UOM
PLX-ADPTDRJ12V-60 7.4 Inch 100-277V AC 60 W Each
