Omni Slim Puck Light
SERIES
C-PLX-OMNISL

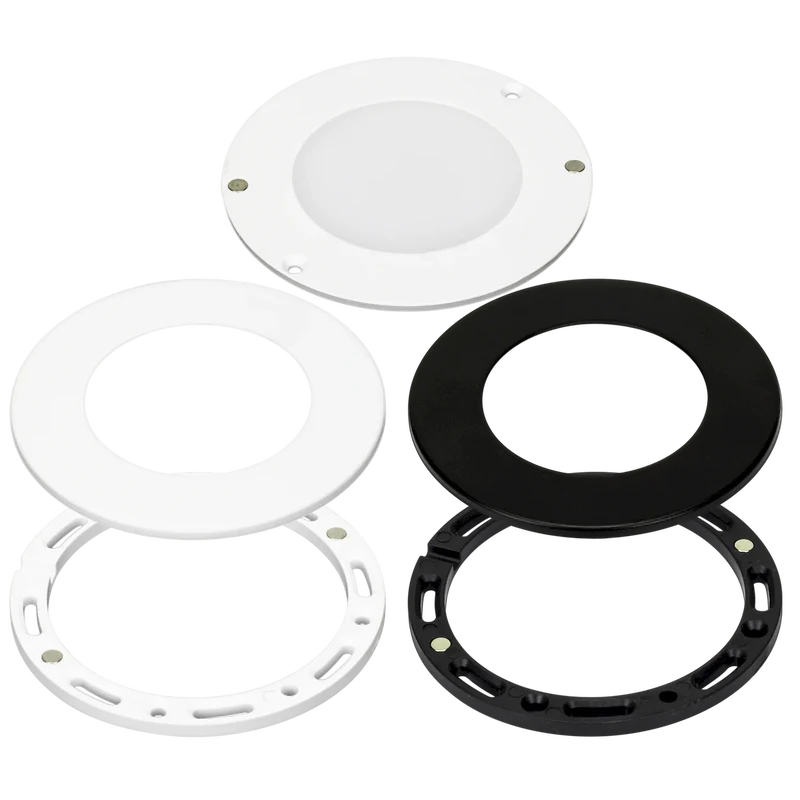

The ultra low profile Omni Slim puck light is only 1/16” tall (1/4” with trim) but produces up to 170 lumens. Available in 3000K or 4000K with a black or white finish the Omni Slim is the task light that is perfect for any accent, under-cabinet, in-cabinet, and other small niche area lighting application.
- Available in 3000K or 4000K
- High color rendering index (90+ CRI)
- 24V DC operation
- Low power consumption of 2.5W
- Surface mount ultra low profile
- cETLus listed for dry locations
- 35,000 hour rated life
Performance
Input Voltage
24V DC
CCT
2700K / 3000K
Finish
White / Black
Wattage
2.5W
Optics (Degree)
120 Degrees
CRI
90+
Max Run
Non-Linkable
Rated Life (Hr)
35,000 Hours
Dimming
Dimmable (5-100%) with most ELV, TRIAC dimmers
Lumens
Up to 170Lm
Certification
Safety Rating
cETLus Listed
Location Rating
Dry
Indoor
Y
| Item Number | Length | Input Voltage | CCT | CRI | Wattage | IP Rating | UOM |
|---|---|---|---|---|---|---|---|
| PLX-OMNSLI-30K-WHBK | 0.25 Foot | 24V DC | 3000K | 90+ | 2.5 W | IP20 | Each |
| PLX-OMNSLI-40K-WHBK | 0.25 Foot | 24V DC | 4000K | 90+ | 2.5 W | IP20 | Each |
