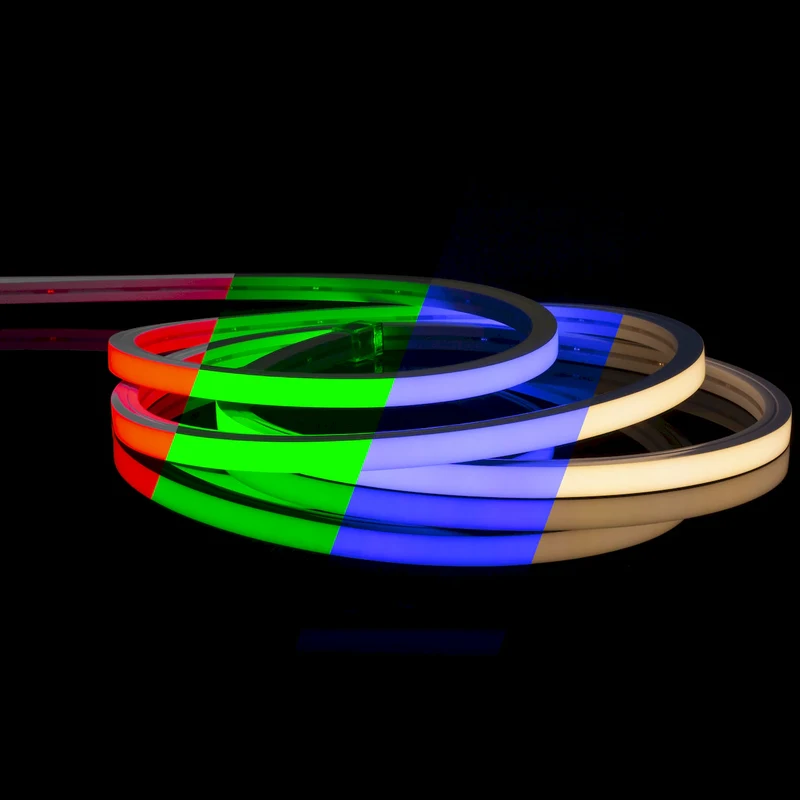

NeonFlex Pro V Top Bend RGBW
SERIES
C-PLX-NFPROV-RGBW
NeonFlex Pro is the next generation solution for achieving seamless lines of direct view lighting for any architectural-grade install. UV, flame, and saltwater resistant, NeonFlex Pro is not only durable, but easy to install. Featuring multiple power feed options, in-field customization makes for a versatile option for any interior or exterior application.
Performance
Input Voltage
24V DC
CCT
RGBW (3000K)
Finish
White
Wattage
4.57W/ft
Optics (Degree)
120 Degrees
Cut Increment
2.46 Inch
Max Run
16.4ft
Rated Life (Hr)
54,000 Hours
Temperature Range
-25°C (-13°F) to 45°C (113°F)
Dimming
Dimmable (0-100%) Via DMX or Smart Controls RGBW)
Lumens
Up to 134Lm/ft
Certification
Safety Rating
cULus Listed
IP Rating
IP67
Location Rating
Wet
Indoor
Y
Outdoor
Y
| Item Number | Length | Input Voltage | CCT | Wattage | Lumens | Max Run | IP Rating | UOM |
|---|---|---|---|---|---|---|---|---|
| PLX-NFPROV-RGBW-98 | 98 Foot | 24V DC | RGBW | 4.57 W/ft | 134 | 16.4 ft | IP67 | Each |
| PLX-NFPROV-RGBW-CC | Custom Cut | 24V DC | RGBW | 4.57 W/ft | 134 | 16.4 ft | IP67 | Foot |
