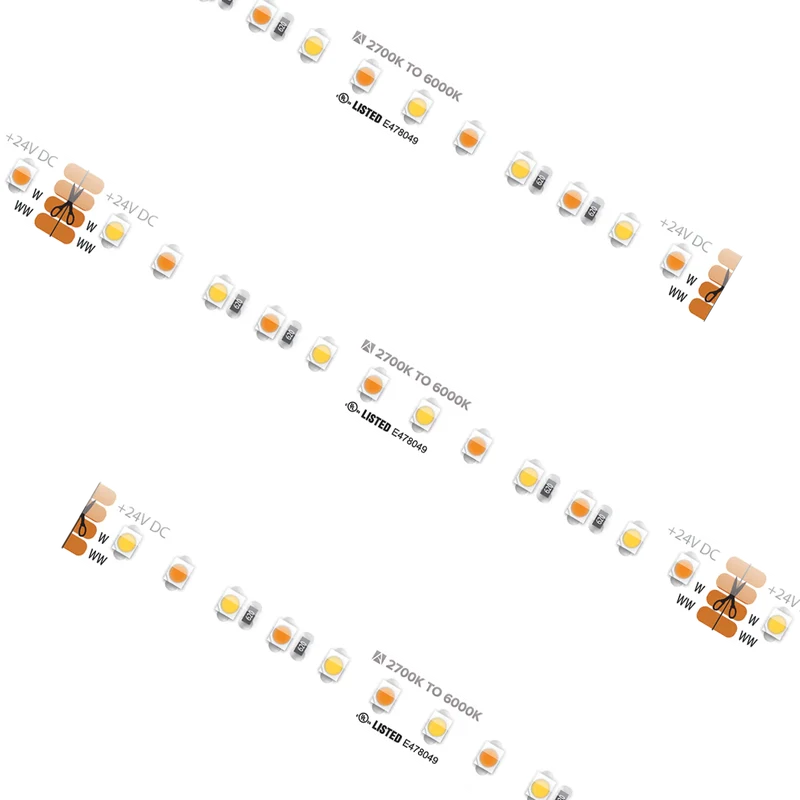

High Output Tunable White Tape Light
SERIES
C-PLX-HTL-TW
Need custom color temperature lighting at the turn of a dial? Tunable CCT series is a great option when on the fly color adjustment is a must, or when single CCT options just won't cut it. Adjust color temps from 2700K to 6000K and everything in between to create elegant lighting catered to times of day or application setting.
- Dynamic white color tuning 2700K up to 6000K with 94+ CRI
- Adjust and blend color temperatures for the perfect dynamic white setting
- Lumen output up to 255Lm per foot while consuming only 2.9W per foot
- Dimmable color blending via DMX Tunable CCT Controller
- Compatible with most third party DMX controls
- Run lengths up to 32.8 feet and cuttable every 3.94"
Performance
Input Voltage
24V DC
CCT
2700K-6000K
Wattage
2.9W/ft
CRI
90+
Lumens
Up to 255Lm/ft
| Item Number | Length | Input Voltage | CCT | CRI | Wattage | Lumens | Max Run | IP Rating | UOM |
|---|---|---|---|---|---|---|---|---|---|
| PLX-HTL54-TW-24V-16 | 16.4 Foot | 24V DC | 2700K-6000K | 90+ | 2.9 W/ft | 255 | 32.8 ft | IP54 | Each |
