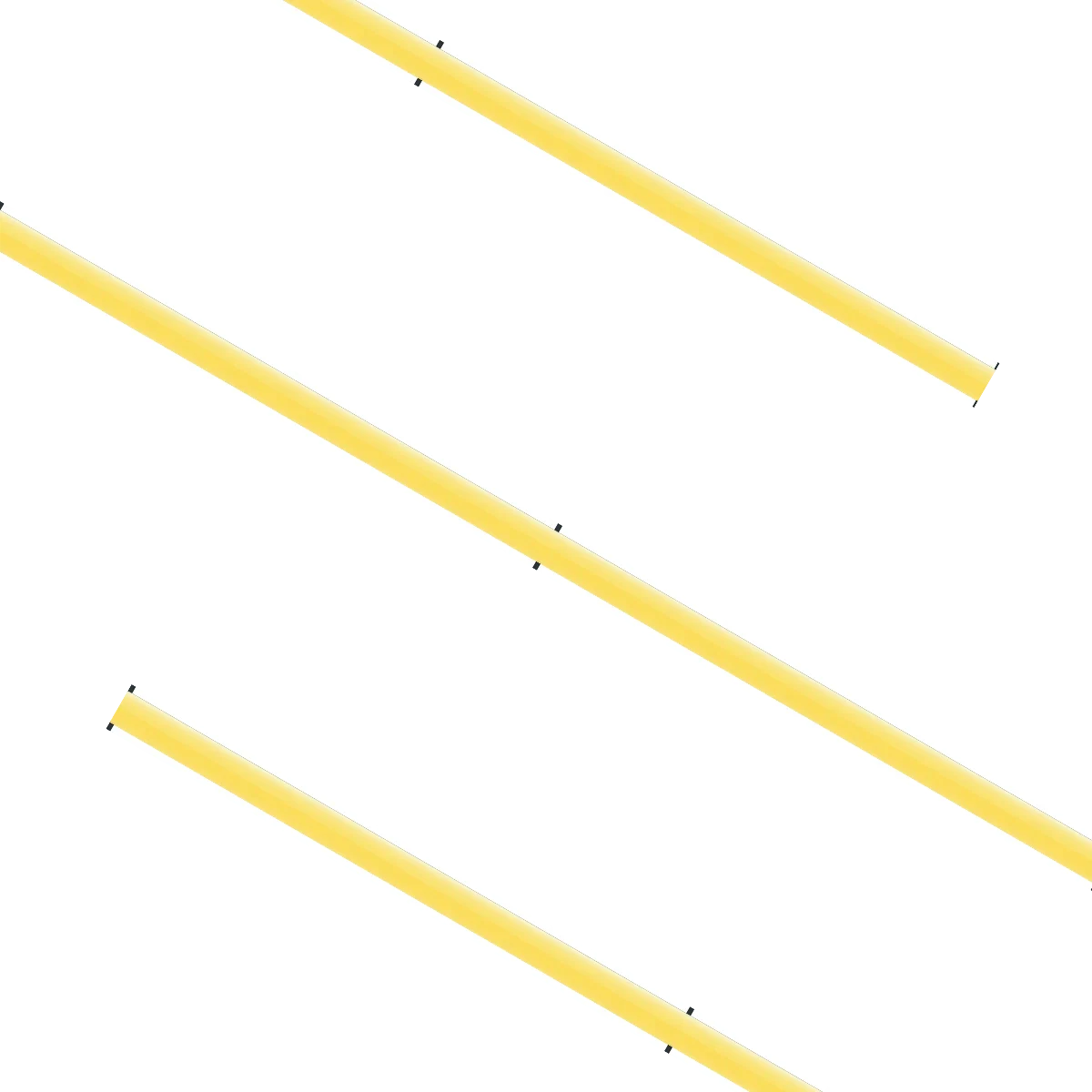

4MM COB Tape Light Static White

SERIES

C-PLX-TL4MM

COB Tape Light features uniform illumination without the need for additional diffused covers or accessories. Featuring a premium seamless line of light making it an ideal solution for areas with low clearance or reflective surfaces to eliminate virtually all dotting or spot-glare effects.

Seamless COB design in ultra small 4mm profile that eliminates virtually all LED dotting
Available in 2700K, 3000K, and 4000K
90+ color rendering index
Lumen output ranging from 210Lm to 240Lm per foot
Cuttable every 1.97” with 16.4ft max run
Easy installation featuring 3M VHB adhesive backing
Available in IP54 coated
Dimmable (5-100%) with most ELV, TRIAC dimmers
Indoor dry/damp locations
50,000 hours rated life

Specifications

Performance

Input Voltage

24V DC

CCT

2700K / 3000K / 3500K / 4000K / 5000K

Wattage

2.43W/ft

Optics (Degree)

120 degrees

CRI

90+

Cut Increment

1.97 Inch

Max Run

16.4ft

Rated Life (Hr)

50,000 Hours

Temperature Range

5°C (41°F) to 70°C (158°F)

Dimming

Dimmable (5-100%) with most ELV, TRIAC dimmers

Lumens

210-240Lm/ft

Certification

Safety Rating

cULus Listed

Indoor

Ordering Information

Item Number	Length	Input Voltage	CCT	Max Run	UOM
PLX-TL4MM54-27K-24V-16	16.4 Foot	24V DC	2700K	16.4 ft	Each
PLX-TL4MM54-30K-24V-16	16.4 Foot	24V DC	3000K	16.4 ft	Each
PLX-TL4MM54-40K-24V-16	16.4 Foot	24V DC	4000K	16.4 ft	Each
